Zipper Packaging Technology for Thermoforming Packaging Machines

As consumers increasingly value convenience, portion control, and food protection, resealable packaging is becoming more widely used for sliced meat, ham, cheese, chicken pieces, and other foods that may be consumed over several occasions. Consumers can take out the required quantity and close the package again, making refrigerated storage more convenient.

Conventional zipper packaging normally uses premade zipper bags or pouches together with a rotary pouch packaging machine. The zipper is already incorporated into the pouch before it enters the machine. During production, the rotary pouch packaging machine picks up the premade pouch, opens it, fills it with product, completes the required atmosphere treatment, and seals the pouch opening.

Utien Pack has developed a different technical solution. Through specialized mechanical design and packaging technology, one thermoforming packaging machine combines three separately supplied materials: zipper material, bottom film, and top film. The three materials are accurately fed, positioned, and heat sealed together to form one complete resealable package.

This solution brings the convenience of zipper reclosure into a continuous thermoforming packaging process. It also addresses several difficult technical problems involving sealing integrity, zipper positioning, continuous feeding, and long term machine stability.

Why Thermoforming Zipper Packaging Is Technically Difficult

Integrating separately supplied zipper material, bottom film, and top film into one thermoforming package presents three major technical challenges.

First, the zipper is thicker and less even than the surrounding film, which can create uneven pressure and small unsealed channels during heat sealing. These channels may cause leakage and affect vacuum or modified atmosphere performance. Utien Pack addresses this problem with a proprietary sealing chamber that distributes controlled pressure across both the flat film and the raised transition area around the zipper.

Second, continuous zipper feeding creates risks of shifting, twisting, or inaccurate positioning as material tension, feeding resistance, speed, and dimensions change during production. Utien Pack uses multiple sensing, alignment, and correction stages to continuously monitor the zipper, bottom film, and top film, keeping the three materials accurately matched and supporting a long term operating stability level of more than 99.5 percent under suitable production conditions.

Third, conventional thermoforming packages are permanently heat sealed and normally cannot be closed again after opening, even though sliced meat, ham, cheese, chicken pieces, and other portioned foods are often consumed over several occasions. By integrating a zipper into the thermoformed package, Utien Pack combines the zipper, bottom film, and top film into one complete package structure and allows consumers to close the package after opening.

Reliable Packaging Performance Through Coordinated Control

Reliable zipper packaging requires more than accurate zipper installation. Product loading, film transport, atmosphere treatment, heat sealing, cooling, and cutting must operate according to the same production rhythm. Moisture, oil, or product particles near the sealing area can increase sealing difficulty, so the loading method and product position must be considered together with the package structure.

Utien Pack controls sealing temperature, pressure, and time according to the zipper material, film structure, product characteristics, package dimensions, and production speed. The cutting system is also configured according to the zipper position and package layout, helping create consistent package dimensions and clean edges without damaging the zipper.

By coordinating each process as part of one complete system, Utien Pack helps maintain package integrity, zipper function, finished package appearance, and continuous production efficiency.

Applications for Sliced Meat, Cheese, Ham, and Chicken

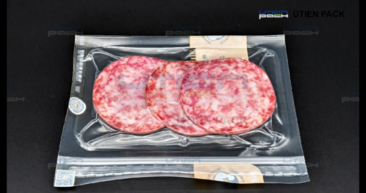

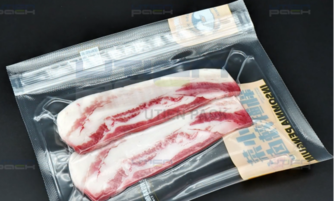

Sliced meat is one of the most representative applications for thermoforming zipper packaging. Products such as sliced ham, bacon, salami, and cooked meat are often sold in packages containing several portions.

The bottom film can be formed according to the length, width, thickness, quantity, and arrangement of the slices. Products can be stacked, overlapped, or arranged according to the required retail presentation.

After the package is opened, consumers can remove only a few slices and close the zipper again. This makes the packaging particularly suitable for family packs and products intended for several consumption occasions.

Cheese has similar packaging requirements. Sliced or portioned cheese can be affected by moisture loss, external odors, and unnecessary contact after opening. A resealable zipper provides a more convenient way to store the remaining product.

The technology can also be applied to ham slices, chicken pieces, and other foods that require reliable protection before opening and convenient storage afterwards. Package dimensions, forming depth, film structure, zipper type, vacuum level, gas composition, and production speed can be adjusted according to the actual product.

Automation for Sliced Meat Production Lines

Flexible film zipper packaging can be integrated with a complete sliced meat production line. The thermoforming packaging machine can connect with automatic slicing equipment, portioning systems, robotic loading systems, online coding systems, automatic labeling machines, checkweighers, metal detectors, inspection equipment, and conveyors.

After slicing and portioning, robotic loading equipment can place the meat accurately into each formed cavity. This helps maintain consistent portion quantity and product arrangement while reducing direct manual handling.

Online coding systems can print production dates, batch numbers, and traceability information. Automatic labeling equipment can apply product labels at a controlled position. Inspection equipment can verify package weight, seal condition, and product safety requirements.

Through coordinated line control, each process operates according to a consistent production rhythm. This helps reduce waiting time between processes, improve production efficiency, and maintain stable packaging quality.

Supporting Sustainable Packaging Goals

Thermoforming zipper packaging can also support more sustainable packaging practices by extending the useful function of the original package. After opening a conventional thermoforming package, consumers may need to place the remaining food in another plastic bag, wrap it with additional plastic film, or transfer it to a separate container. With an integrated resealable zipper, the original package can continue to serve as a storage pack after opening.

Consumers can repeatedly open and close the same package without purchasing or using additional plastic storage bags. This helps reduce the consumption of extra plastic materials and improves the functional reuse of the original film package. By allowing packaging materials to remain useful for longer, the solution responds to growing market demand for reduced plastic consumption and more sustainable packaging.

Customized Thermoforming Zipper Solutions from Utien Pack

Different products have different requirements for portion size, film structure, zipper position, vacuum level, package dimensions, production speed, and automation.

Utien Pack develops customized flexible film zipper packaging solutions according to each product and its actual production conditions. From film forming and zipper application to vacuum, sealing, cutting, coding, labeling, inspection, and line integration, every stage is designed as part of one coordinated packaging system.

Utien Pack pays particular attention to the cooperation between each process. Reliable packaging results do not depend on one individual component alone. They require accurate coordination between mechanical structures, control systems, packaging materials, operating parameters, and supporting equipment. Stable cooperation between these stages helps maintain consistent zipper positioning, smooth engagement, reliable sealing, accurate cutting, and continuous product flow.

The goal is not only to successfully combine the zipper, bottom film, and top film, but also to ensure that the complete system can maintain stable performance during long term production. Through multiple sensing and alignment stages, proprietary chamber design, and coordinated machine control, the solution can achieve an operating stability level of more than 99.8 percent under suitable conditions.

Utien Pack also provides a complete closed loop service system throughout the equipment life cycle. Service can cover product analysis, package testing, solution design, equipment manufacturing, factory acceptance testing, installation, commissioning, operator training, maintenance guidance, spare parts support, and technical assistance. Feedback collected during production is used to support further adjustment and optimization.

Through coordinated process control, durable equipment design, and complete life cycle service, Utien Pack helps food producers achieve reliable packaging results and maintain stable production over the long term.
